Home > Electrical Wire Cable >

14AWG 16AWG 2.5mm 1.5mm 3 2 Core Stranded Copper Electric Cable With PVC Insulation

Product Categories

Haiyan Sihuan Electronic Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

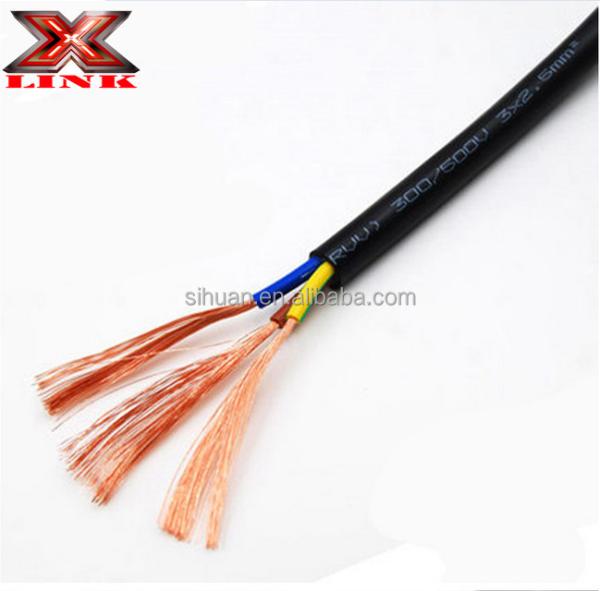

14AWG 16AWG 2.5mm 1.5mm 3 2 Core Stranded Copper Electric Cable With PVC Insulation

Name: 14AWG 16AWG 25mm 15mm 3 2 Core Stranded Copper Electric Cable With PVC Insulation
Brand: X LINK
Price: 1 USD

14AWG 16AWG 2.5mm 1.5mm 3 2 Core Stranded Copper Electric Cable With PVC Insulation Manufactures

Place of Origin : Zhejiang, China

Brand Name : X LINK

Model Number : 1.5mm 2.5mm 4.0mm

Certification : CE ROHS

MOQ : 50 rolls

Price : Negotiable

Type : insulated

Application : industrial

Conductor Material : Copper

Conductor Type : Stranded

Insulation Material : PVC

item : 25mm 10mm 2.5mm 1.5mm 3 2 core electric copper cable wire

application : house

jacket : pvc

lead time : 30 days

origin : haiyan, zhejiang china

Color : black or white

conductor : annealed COPPER

PACKAGE : drum

standard : BS6500,IEC60227:1993, VDE 0281

Contact Now

25mm 10mm 2.5mm 1.5mm 3 2 core electric copper cable wire

14AWG 16AWG 2.5mm 1.5mm 3 2 Core Stranded Copper Electric Cable With PVC Insulation

PROFESSIONAL CABLE MANUFACTUER - WE ARE FACTORY

best DC 12 V car aut

Products Oview

14AWG 16AWG 2.5mm 1.5mm 3 2 Core Stranded Copper Electric Cable With PVC Insulation

Product Description

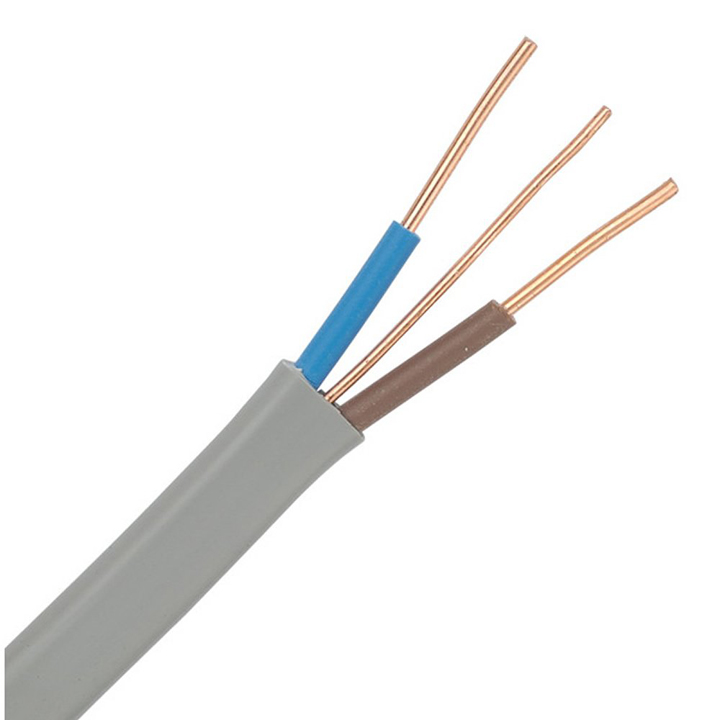

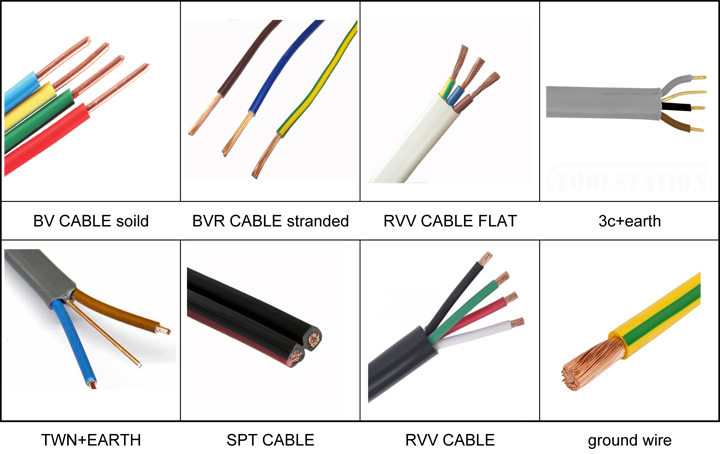

Type	BV BVV RV RVV RVVB VDE FLAT TPS TWIN+EARTH
Voltage Rate		450/750V
Cores		1 C 2C, 3C, 2C+E, 3C+E
Range of Nominal cross section:		0.50 mm2 ~ 25 mm2
Application	These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial aaplications where not subject to mechanical damage.
Standard	AS/NZS 5000.2 BS6500,IEC60227:1993, VDE 0281
Constructions	Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: V-90 PVC Sheath: 3V-90 PVC easy tear Core color: red and black for active core, green/yellow for earth core, white for sheath
Max. Operating Temperature		90°C

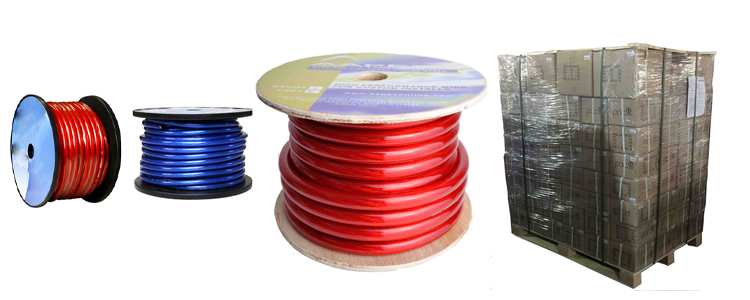

Packing	100 meters per roll or 500 meters per roll or as per requirement
Production Capacity	50 kilometer/ day
MOQ	10000 meters for small size, 5000 meters for middle size, 1000 meters for big size
Delivery time	10~15 working days
Remark	The cable can be of flame retardance, fire resistance and other property

14AWG 16AWG 2.5mm 1.5mm 3 2 Core Stranded Copper Electric Cable With PVC Insulation

Certifications

14AWG 16AWG 2.5mm 1.5mm 3 2 Core Stranded Copper Electric Cable With PVC Insulation

14AWG copper electric cable

16AWG copper electric cable

2.5mm copper electric cable

14AWG 16AWG 2.5mm 1.5mm 3 2 Core Stranded Copper Electric Cable With PVC Insulation Images
